Steam boiler UL-S

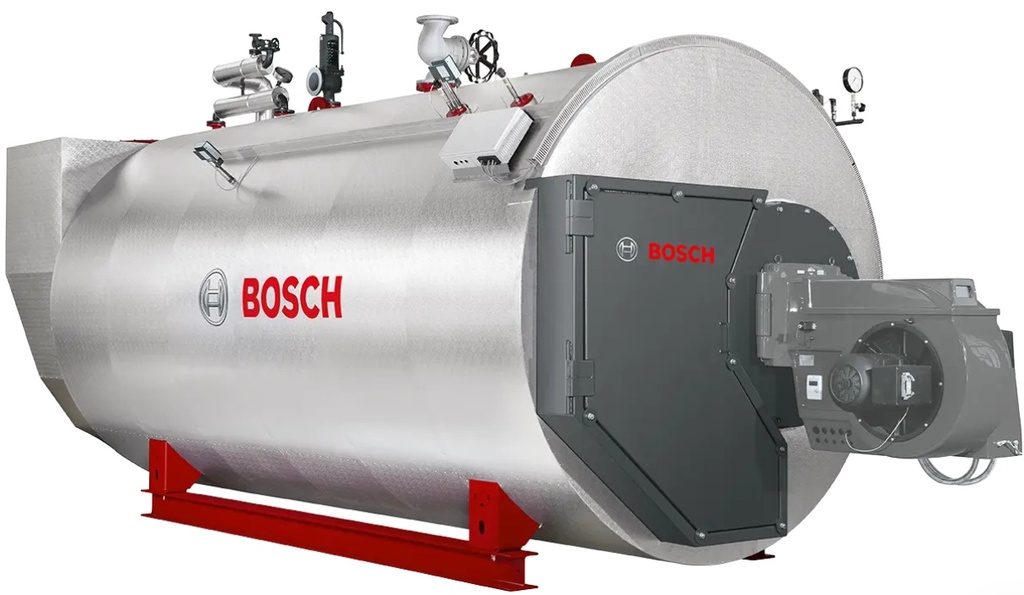

UL-S steam boiler
This is a highly efficient three-pass steam boiler with a steam output of 1,250 to 28,000 kg of steam per hour at pressures up to 30 bar. With very low emissions and the option of converting to biofuel or hydrogen, the UL-S is perfectly suited to the requirements of the future.
Переваги та технічні особливості Bosch Universal UL-S
Висока ефективність (ККД)
Інтегрований економайзер дозволяє досягти ККД до 95%, що суттєво знижує витрати палива при генерації пари.
Велика парова камера
Конструкція жаротрубного котла з великим об'ємом води забезпечує стабільний тиск навіть при різких пікових навантаженнях.
Цифрове керування BCO
Сучасна система керування від Bosch забезпечує повну автоматизацію та можливість дистанційного моніторингу всіх параметрів.
Гнучкість палива
Можливість роботи на природному газі, рідкому паливі або у комбінованому режимі з низьким рівнем викидів NOx.
Промисловий паровий котел
Steam boilers Universal UL-S, UL-SX
The UL-S boiler type is a three-way boiler with a large water volume that meets all requirements in the medium and high power ranges.
In a cylindrical pressure vessel, the fire tube, the internal combustion chamber for flue gases, are washed with water, and the first and second passes of the smoke tubes are arranged in such a way as to optimize the passage of gas flows. The radiant and convective heating surfaces work together to ensure rapid water circulation, thus accelerating the movement of steam bubbles into the steam chamber. The heat supplied by the burning fuel is quickly converted into steam without excessive stress on the materials thanks to uniform heat transfer. The large water volume provides enough space to cover even sudden peak steam consumption.
- Intuitive boiler control based on SPS with maximum transparency of operating data
- High efficiency thanks to three-way technology, built-in economizer, and effective thermal insulation
- High pressure stability and steam quality even with strong fluctuations in steam demand
- The boiler can be equipped with a separate fourth flue for using excess heat.
- The boiler shell can also be used as a clean exhaust heat recovery boiler after CHP plants or gas turbines.
- Automatic start, standby and shutdown device SUC
- Suitable for many burner systems
- Reduction of harmful emissions during combustion through the use of modern furnace systems and careful selection of the best combination of burner and boiler
- Easy commissioning with a boiler control system with pre-set parameters
- Easy wiring at the installation site thanks to ready-to-connect connectors
Конструктивні особливості парового котла Bosch UL-S
Надійність та тривалий термін служби
Максимальна енергоефективність підприємства
The patent for three-pass technology, issued in 1952, is the basis for the outstanding success of this model, which still exists today. The fire tube (first pass) and two bundles of smoke tubes (second and third passes) are perfectly integrated into the pressure vessel together with the rear swivel chamber, which is washed with water. Thanks to the lateral position of the fire tube and the horizontal rotation of the flue gases at the rear and the vertical rotation at the front, a large radiant and convection heating surface with a large steam chamber is combined with minimal external dimensions. The bottom is securely fastened thanks to a large heat pipe that runs through it, and thanks to the clever use of corner anchors to distribute the load, it is securely connected to the boiler shell..
If superheated steam is required instead of saturated steam, a superheater module can be installed on the front rotary chamber. A safety valve continuously regulates the temperature of the superheated steam over a wide range of loads. The surface of the flues is easily accessible through the opening door of the rotary chamber.
Реалізовані проекти та референс-об'єкти

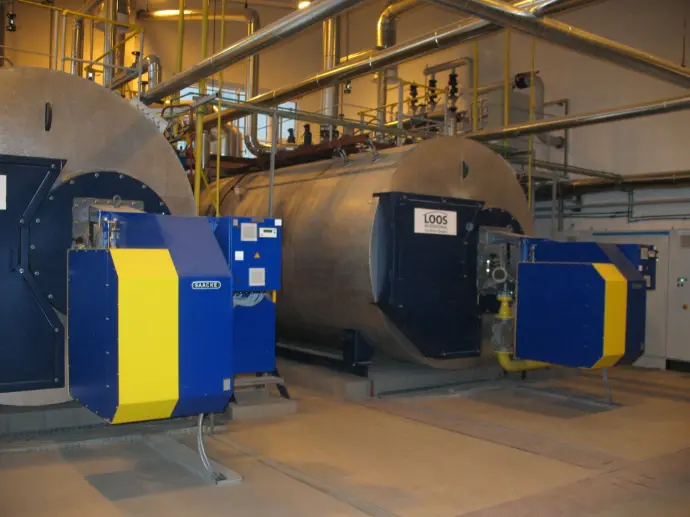

Монтаж парової котельні 20 т/год для заводу будівельних матеріалів (м.Бровари, Київська обл.)

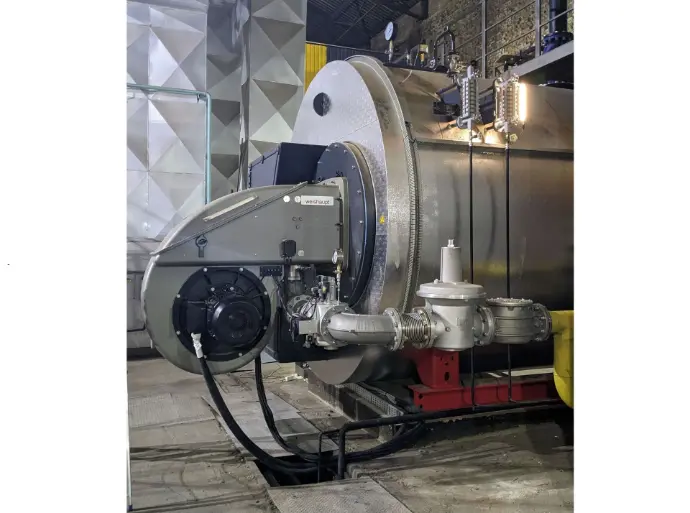

Впровадження системи парогенерації 16 т/год на відновлюваному паливі (біоетанолі), Фастівський р-н

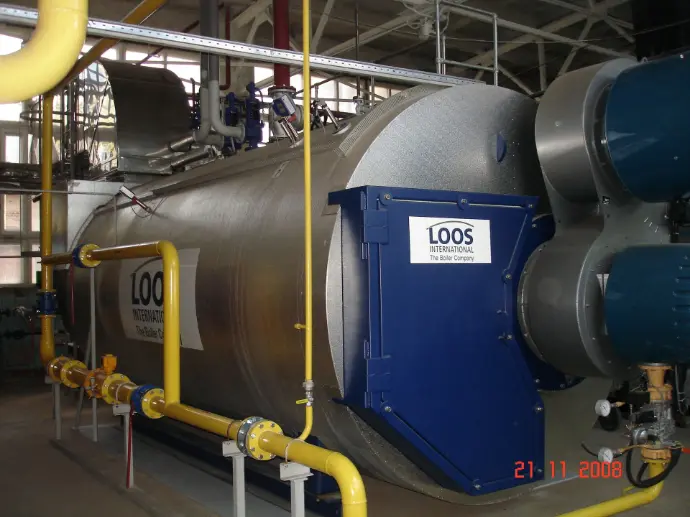

Монтаж парового котла 10 т/год для великої кондитерської фабрики, м. Житомир
